How to Select the Right Helical Spring: Compression, Tension & Torsion Explained

Helical springs are among the most fundamental mechanical components in engineering. From the valve springs in internal combustion engines to the delicate mechanisms in medical devices, these coiled components store and release mechanical energy with remarkable efficiency.

Yet selecting the right helical spring is not as simple as picking a size from a catalog. Engineers must consider load direction, force requirements, material properties, environmental conditions, and end configurations. Get it wrong, and the spring may fail prematurely—or worse, cause system failure.

This guide explains the three primary types of helical springs—compression, tension, and torsion—and provides a systematic approach to selecting the right one for your application.


The Three Types of Helical Springs

Helical springs are classified by the direction of the primary load they are designed to resist. Understanding these distinctions is the first step in proper selection.



1. Compression Springs

Compression springs are designed to resist compressive forces. When a load is applied, the coils compress, storing energy. When the load is removed, the spring returns to its original length.

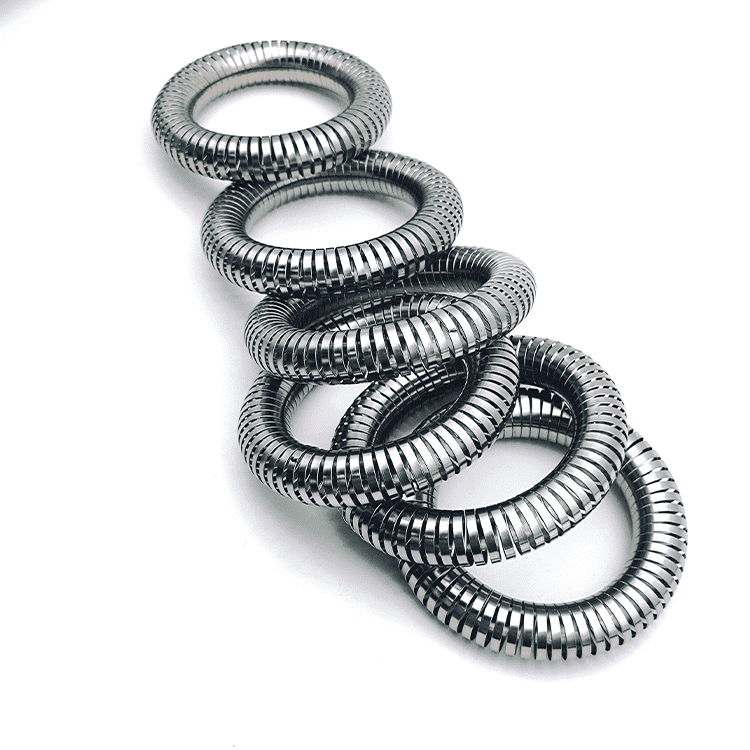

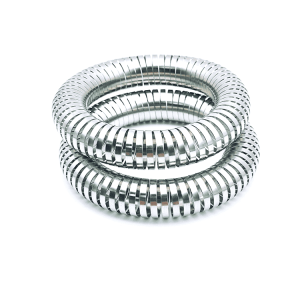

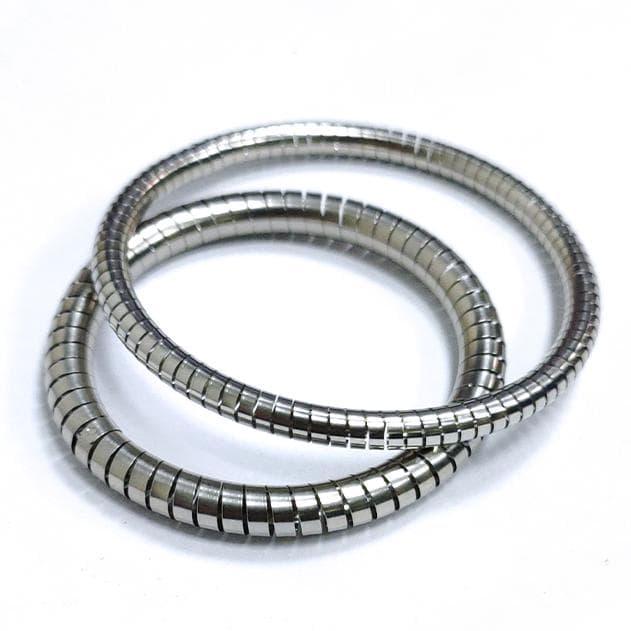

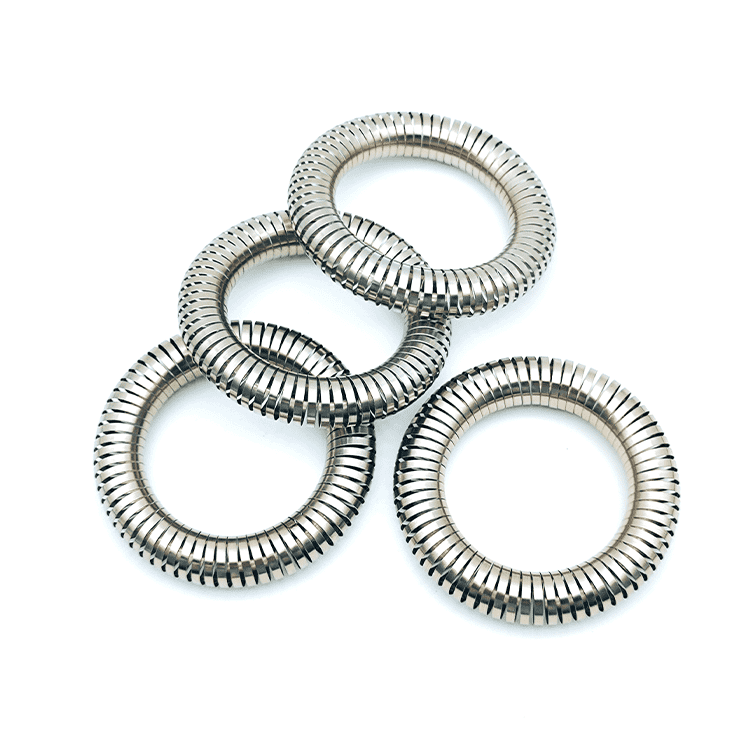

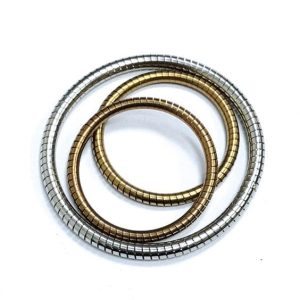

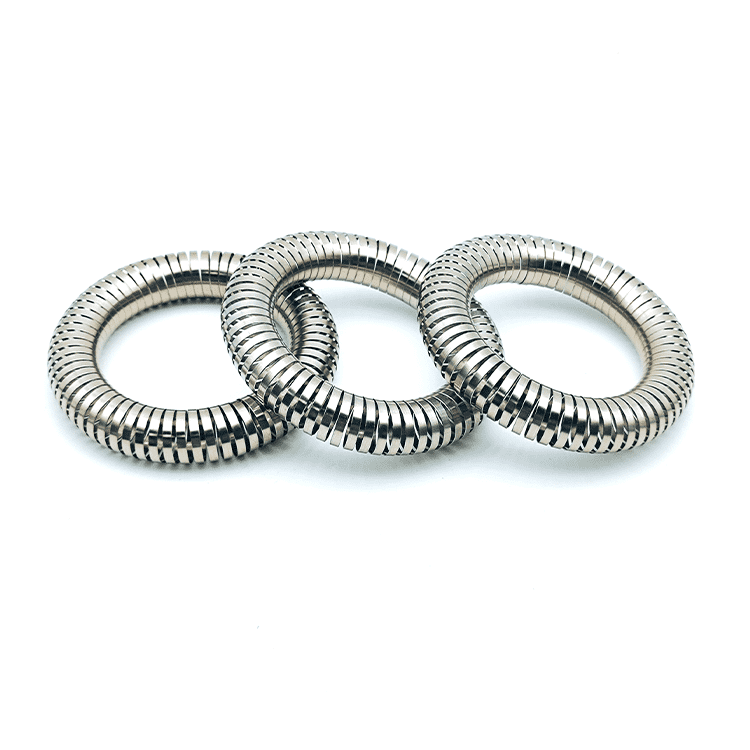

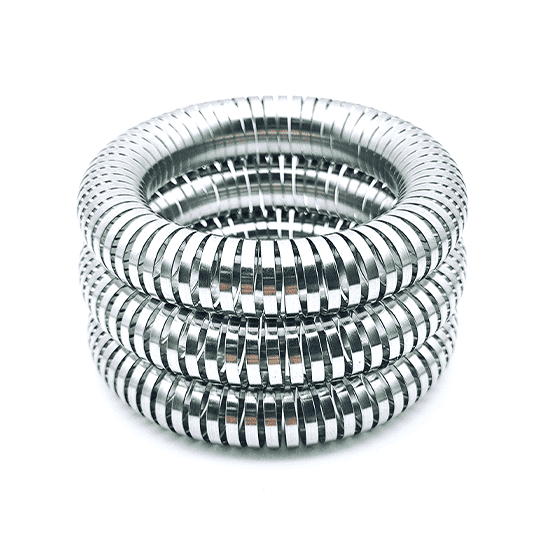

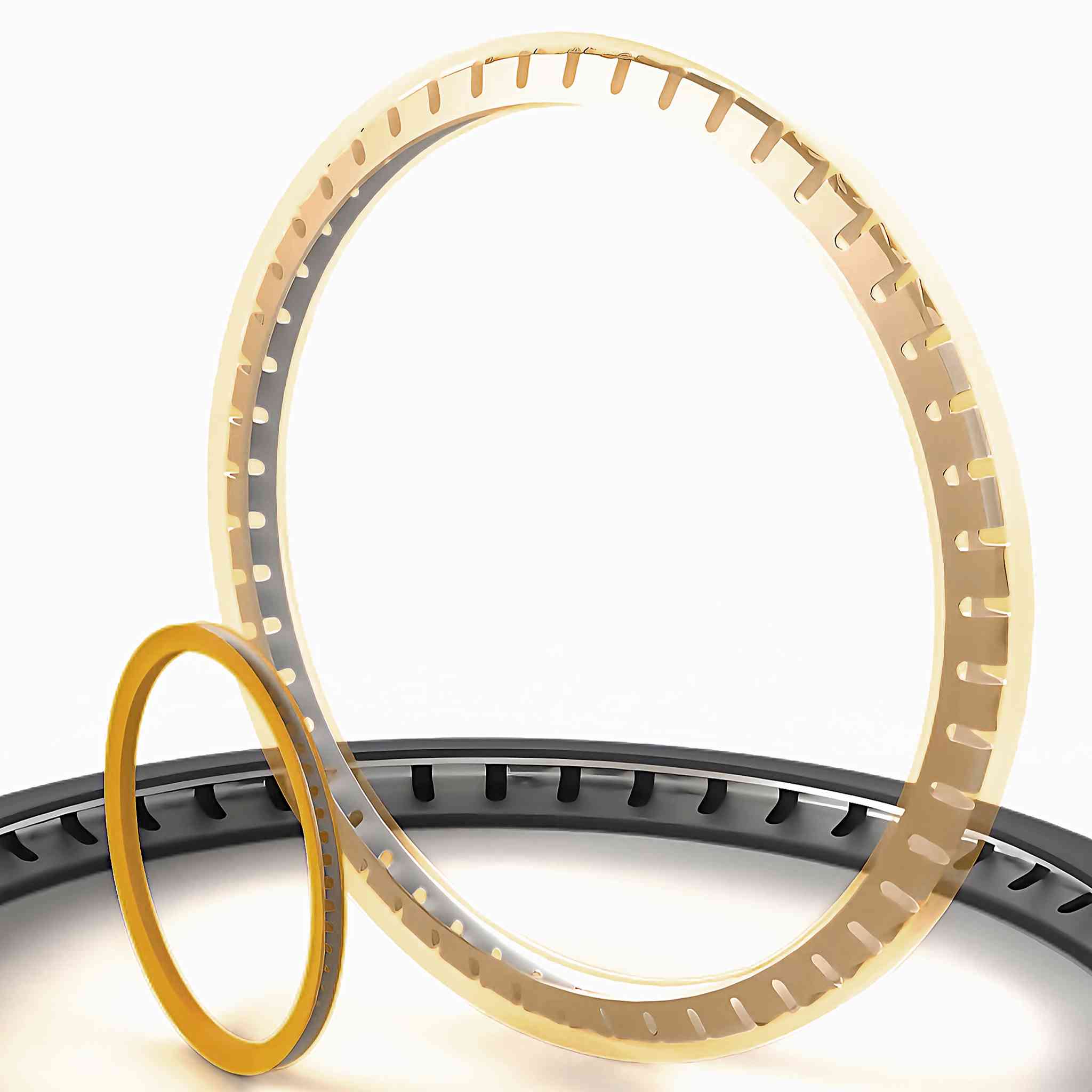

H型泛塞封弹簧---瀚达电子
Characteristic Description
Coil Configuration Open coils with space between them (pitch)
Load Direction Axial compression
End Types Closed, closed & ground, open, open & ground
Typical Applications Valve springs, suspension systems, push-button mechanisms, shock absorbers

Key Design Parameters:

  • Wire Diameter (d): Thicker wire increases spring rate

  • Mean Diameter (D): Larger diameter reduces spring rate

  • Number of Active Coils (n): More coils reduce spring rate

  • Free Length (L): Uncompressed length

  • Solid Height: Length when fully compressed

Spring Rate Formula:
k = Gd⁴ / 8nD³

Where:

  • k = spring rate (force per unit deflection)

  • G = shear modulus of material

  • d = wire diameter

  • n = number of active coils

  • D = mean coil diameter

2. Extension Springs

Extension springs are designed to resist tensile forces. They are wound with coils that are tightly pressed together (initial tension) and extend when pulled apart.

Characteristic Description
Coil Configuration Tightly wound coils with initial tension
Load Direction Axial tension
End Types Machine hooks, cross-over center hooks, threaded inserts, loop ends
Typical Applications Garage door springs, balance scales, return mechanisms, exercise equipment

Key Considerations for Extension Springs:

  • Initial Tension: The force required to begin separating the coils

  • Hook Design: End hooks are common failure points—must be properly designed for load

  • Maximum Extended Length: Should not exceed elastic limits

3. Torsion Springs

Torsion springs are designed to resist rotational or twisting forces. The spring stores energy when wound around its axis and releases it when allowed to unwind.

Characteristic Description
Coil Configuration Coils are tightly wound; legs extend from ends
Load Direction Rotational (torque)
Leg Configurations Straight, hinged, offset, custom angles
Typical Applications Clothespins, garage door counterbalances, electrical switches, automotive starters

Key Design Parameters:

  • Body Length: Length of coiled portion

  • Leg Length: Length of straight ends

  • Leg Angle: Angle between legs in relaxed state

  • Wind Direction: Left-hand or right-hand wound

Torque Formula:
T = Ed⁴θ / 10.8 nD

Where:

  • T = torque

  • E = Young’s modulus

  • d = wire diameter

  • θ = angular deflection (degrees)

  • n = number of active coils

  • D = mean coil diameter


Comparison Summary Table

Parameter Compression Spring Extension Spring Torsion Spring
Primary Load Compressive (pushing) Tensile (pulling) Rotational (twisting)
Coil State Open coils Tightly wound Tightly wound
End Configuration Ground ends, closed ends Hooks, loops, threads Legs of various lengths
Key Failure Mode Buckling, fatigue Hook failure, over-extension Permanent set, leg fracture
Common Applications Valves, shocks, buttons Garage doors, scales Clips, switches, counterbalances

Step-by-Step Selection Guide

Step 1: Determine Load Direction

The first and most critical question: In what direction will the load be applied?

If the load is… Choose…
Compressive (pushing together) Compression spring
Tensile (pulling apart) Extension spring
Rotational (twisting) Torsion spring

Step 2: Calculate Required Spring Rate

For compression and extension springs, determine the required spring rate (k) :

k = Load / Deflection

Example: A valve spring must provide 50 lb of force when compressed 0.25 inches.
k = 50 lb / 0.25 in = 200 lb/in

For torsion springs, determine the required torque per degree:

Torque Rate = Torque / Angular Deflection

Step 3: Consider Space Constraints

Measure the available space for the spring:

Parameter Compression Extension Torsion
Length/Height Free length; installed height Free length; extended length Body length
Diameter Outside diameter; inside diameter Outside diameter; inside diameter Mean diameter
Travel Available compression range Available extension range Available angular range

Step 4: Select Material

Material selection affects spring performance, fatigue life, and environmental compatibility.

Material Properties Best For
Music Wire (ASTM A228) Highest tensile strength, good fatigue life General-purpose, high-stress applications
Oil-Tempered Wire (ASTM A229) Good fatigue properties, moderate cost Automotive, industrial
Stainless Steel (302/316) Corrosion resistant Medical, marine, food processing
Chrome Silicon High strength, shock resistance High-stress, high-cycle applications
Beryllium Copper Non-magnetic, conductive Electrical contacts, instruments
Inconel High-temperature capability Aerospace, high-heat applications

Step 5: Determine End Configurations

End types affect how the spring interfaces with other components.

Compression Spring Ends:

End Type Description Application
Closed & Ground Coils closed; ends ground flat Precision, high-cycle applications
Closed Coils closed; ends not ground General-purpose
Open Coils not closed; no grinding Low-cost, non-critical

Extension Spring Ends:

End Type Description Application
Machine Hooks Hooks formed at ends General-purpose
Cross-Over Center Hooks Hooks centered over spring Balanced loading
Threaded Inserts Threaded ends Adjustable tension applications

Torsion Spring Legs:

Leg configurations are specified by the angle between legs in the relaxed state and the direction of wind (left or right hand).

Step 6: Evaluate Environmental Conditions

Condition Consideration
Temperature Select material rated for operating range
Corrosion Stainless steel or plated surfaces
Cyclic Loading Ensure material fatigue strength meets cycle requirements
Shock/Vibration Consider chrome silicon or other shock-resistant materials

Common Selection Mistakes

1. Confusing Compression and Tension Springs

A compression spring used in tension will typically fail because the end configurations are not designed for tensile loads. Always match spring type to load direction.

2. Ignoring Spring Index

The spring index (mean diameter ÷ wire diameter) should typically be between 4 and 12. Indexes below 4 cause manufacturing difficulties and high stresses; indexes above 12 increase buckling risk for compression springs.

3. Overlooking End Configurations

End types significantly affect load distribution and installation. A compression spring with open ends may not sit flat; extension spring hooks may fail if not properly designed for the load.

4. Forgetting Buckling in Compression Springs

Long compression springs (free length ÷ mean diameter > 4) may buckle under load. Consider using guide rods or sleeves, or select a higher spring rate design.

5. Neglecting Initial Tension in Extension Springs

Extension springs require initial tension to begin separating the coils. This initial tension must be overcome before the spring begins to extend—a factor often overlooked in calculations.


Application Examples

Example 1: Automotive Valve Spring (Compression)

  • Requirement: 200 lb/in spring rate, 0.5-inch travel, 100,000 cycle life

  • Selection: Music wire, closed & ground ends, 0.200-inch wire diameter, 1.200-inch mean diameter

  • Verification: Spring rate calculated; buckling checked; fatigue life validated

Example 2: Garage Door Balance Spring (Extension)

  • Requirement: 150 lb initial tension, 3-foot extension, corrosion resistance

  • Selection: Oil-tempered wire, machine hooks, 0.250-inch wire diameter, corrosion-resistant coating

  • Verification: Initial tension meets requirement; hook strength verified

Example 3: Electrical Switch Return (Torsion)

  • Requirement: 0.5 in-lb torque at 90° deflection, compact space

  • Selection: Beryllium copper, right-hand wound, 0.040-inch wire diameter, 0.250-inch body length

  • Verification: Torque per degree calculated; space constraints satisfied


Conclusion

Selecting the right helical spring requires a systematic approach that considers load direction, spring rate, space constraints, material properties, end configurations, and environmental conditions.

Spring Type Best Suited For
Compression Applications requiring resistance to pushing forces, shock absorption, or stored energy release
Extension Applications requiring pulling force, return mechanisms, or counterbalancing
Torsion Applications requiring rotational force, clamping, or counterbalance with angular deflection

When in doubt, consult spring manufacturers early in the design process. They can provide force-deflection curves, material recommendations, and custom design support to ensure your spring performs reliably throughout its service life.
