Engineered for demanding high-temperature applications requiring exceptional strength, oxidation resistance, and long-term reliability.
Handa Spring manufactures custom Inconel X-750 spring energizers for demanding sealing applications. We support prototype development, custom tooling, engineering review, and volume production based on customer drawings or samples.
Custom Spring Manufacturing Engineering Review Before Production Prototype & Small MOQ Available Fast Quotation & Global DeliveryOverview
Inconel X-750 is one of the most frequently specified alloys for high-temperature spring energizers when long-term spring force retention is required. Its combination of high-temperature strength, oxidation resistance, and relaxation resistance makes it a preferred choice for sealing applications operating above 400°C.
At Handa Spring, we manufacture custom Inconel X-750 spring energizers rather than supplying raw material. Every project is reviewed for manufacturability, tooling requirements, and production feasibility before quotation.
Whether you have detailed drawings, samples to reverse engineer, or need engineering support, our team delivers custom Inconel X-750 spring energizers with consistent quality and reliable performance.
Quick Summary
| Material | Inconel X-750 (UNS N07750) |
| Manufactured Forms | Wire · Strip |
| Spring Types | HelicalCanted CoilGarterCantileverFull ContactDetached Leg |
| Best For | High-Temperature Spring Energizers |
| Tooling Status | Wire: No toolingStrip: Existing toolingCustom: Available |
| Key Capabilities | Custom Tooling · Prototype · Small MOQ · Fast Delivery |
Quick reference — see detailed sections below for more information.
Spring Types
Inconel X-750 is available in both wire and strip forms, supporting a wide range of spring energizer configurations.

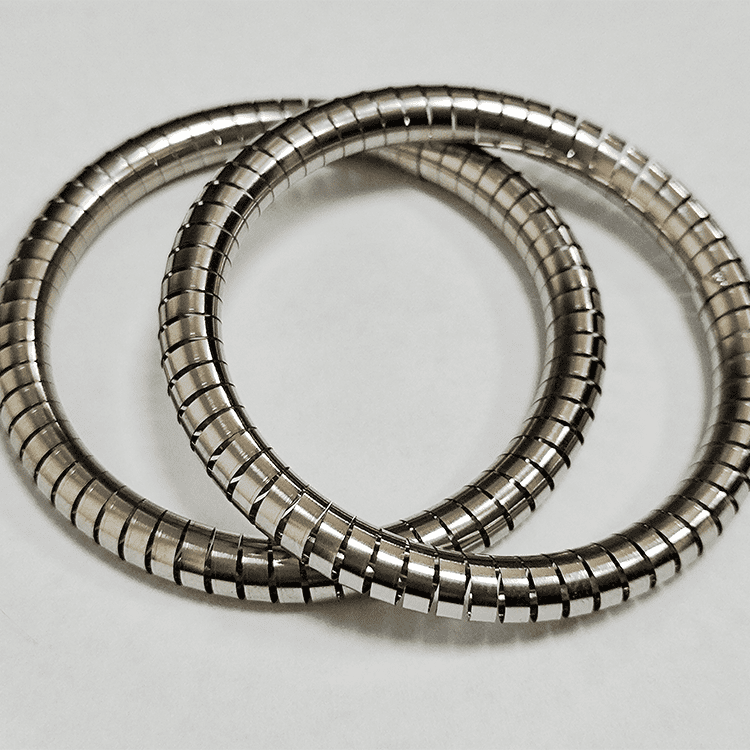

Manufacturing: Precision strip forming
Best For: Static and slow dynamic sealing applications requiring consistent force at elevated temperatures
Manufacturing: Precision wire forming
Best For: Applications requiring nearly constant spring force across a range of deflections at elevated temperatures
Manufacturing: Precision stamping & forming
Best For: Applications requiring continuous circumferential contact and enhanced sealing performance at elevated temperatures

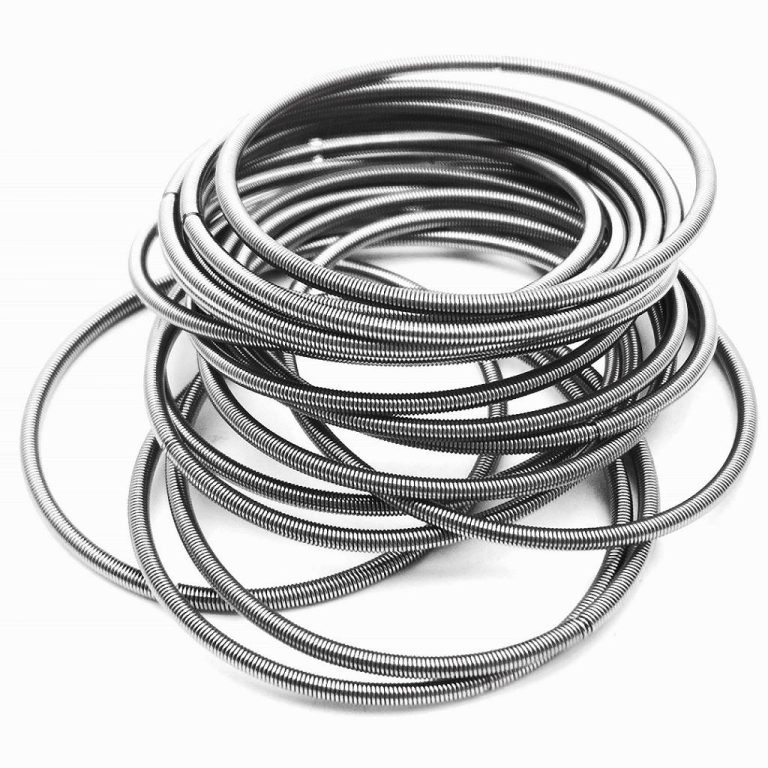

Manufacturing: Precision wire forming
Best For: Rotary shaft sealing applications requiring stable radial loading and long-term corrosion resistance at high temperatures
Manufacturing: Precision stamping & forming
Best For: Dynamic sealing applications requiring low friction and precise spring loading in limited installation space
Manufacturing: Precision stamping & forming
Best For: Custom sealing geometries where independent leg placement is required for specific installation constraints
Tooling & Manufacturing
Different spring types require different manufacturing methods. The table below shows which spring types can
be produced without dedicated tooling and which require custom tooling development.
| Spring Type | Manufacturing Method | Tooling Status |
|---|---|---|
| Helical Spring | Precision strip forming | No dedicated stamping tooling |
| Canted Coil Spring | Precision wire forming | No dedicated tooling required |
| Full Contact Spring | Precision stamping & forming | Standard tooling for common sizes Custom tooling when required |
| Garter Spring | Precision wire forming | No dedicated tooling required |
| Cantilever Spring (U / V / Detached Leg) |
Precision stamping & forming | Standard tooling for common sizes Custom tooling for new profiles |
Tooling options explained: For wire-formed springs (Canted Coil, Garter), no tooling is required, enabling fast prototypes and flexible customization. For strip-formed springs (Helical, Cantilever, Full Contact), we maintain a large library of existing tooling for common sizes, and can develop custom tooling efficiently for new profiles when required.
Manufacturing
Selecting the right material is only the first step. Consistent spring performance depends on manufacturing capability, tooling, and process control.
At Handa Spring, we manufacture finished spring energizers—not raw material. Every production stage is controlled to achieve the required spring force, dimensional accuracy, and repeatability.
Every spring is manufactured according to customer drawings or application requirements. We support both standard dimensions and fully customized spring geometries.
Inconel X-750 is available in both precision wire and strip forms. We support wire diameters from 0.005 in. and strip thicknesses from 0.0020 in.
Wire-formed spring types (Canted Coil, Garter) can be manufactured without dedicated tooling, allowing fast prototype delivery. Strip-formed prototypes are optimized using existing tooling whenever possible.
Spring force is one of the most critical parameters affecting sealing performance. By adjusting geometry, material condition and manufacturing processes, we can customize spring force to meet customer requirements.
Additional processes include precision welding, heat treatment, ultrasonic cleaning, passivation, spring cutting to specified lengths, and spring force testing—selected according to project requirements.
Each project follows an engineering review before quotation to minimize production risk and shorten development time.
Why Handa Spring
Serving customers across North America, Europe and Asia. Thousands of custom spring designs manufactured. Decades of spring manufacturing experience.
Maintaining hundreds of existing tooling profiles enables many standard spring geometries to enter production immediately without developing new tooling. This reduces prototype lead time and lowers development costs for many customer projects.
Quotations are prepared after engineering review rather than simple price calculation. Drawing, tolerance, and manufacturability are evaluated before quotation, reducing the risk of later revisions and production delays.
We support prototype quantities for development and testing, small batches for qualification, and volume production for long-term manufacturing. Quotations are prepared based on project requirements rather than fixed minimum orders.
Supporting customers across aerospace, power generation, semiconductor, medical equipment, and industrial sealing applications. Our team has worked with both large OEMs and specialized seal manufacturers on custom Inconel X-750 spring projects with varying volume and performance requirements.
When drawings are not available, we can evaluate existing spring samples to determine geometry, material condition, and force characteristics. Replacement springs can then be manufactured without original design documentation.
Technical discussions are conducted directly between customers and engineers, without sales intermediaries. Video meetings and drawing reviews are available whenever required to resolve questions efficiently.
Over the years, Handa Spring has supplied custom Inconel X-750 spring energizers to seal manufacturers, engineering firms, and equipment OEMs across North America, Europe, and Asia. Our objective is to become part of our customers’ engineering process—from prototype development through long-term production.
Engineering Experience
Practical experience accumulated over years of manufacturing custom Inconel X-750 spring energizers
for customers worldwide.
Inconel X-750’s high yield strength requires precise forming compensation to achieve final spring geometry. Experience with springback behavior reduces trial runs and improves first-article accuracy.
Multiple aging options are available depending on service temperature. Heat treatment processes are controlled to achieve stable spring properties across production batches.
Thin strip material requires careful handling and forming techniques to minimize distortion during stamping and coiling. Tooling design and process parameters are adjusted accordingly.
Dimensional tolerances and spring force are verified during production to ensure consistency from prototype through volume manufacturing. Adjustments are made to forming parameters when variations are detected.
These decisions are made during engineering review to minimize production risk and improve delivery reliability.
Applications
Inconel X-750 spring energizers are specified for high-temperature sealing applications
where reliability and performance are critical.
Actuator seals · Fuel system seals · Engine seals
Turbine seals · High-temperature fasteners · Boiler seals
Reactor seals · Valve stem seals · High-temperature fasteners
Downhole seals · Subsea connectors · Wellhead seals
Heat-treating fixtures · Forming tools · Extrusion dies
Furnace seals · Thermal processing equipment · Vacuum systems
Typical sealing locations: Valve stem seals · Pump shaft seals · Turbine seals · Rotary shaft seals · Reciprocating rod seals · High-temperature static seals · Vacuum chamber seals.
Comparison
For customers who have already selected Inconel X-750, this table is for reference only. It highlights key
performance differences relevant to spring energizer applications.
| Attribute | Inconel X-750 | Inconel 718 | Inconel 625 | Elgiloy | MP35N | 17-7PH | 302 |
|---|---|---|---|---|---|---|---|
| Continuous Temp | 1300°F |
1200°F |
1100°F |
850°F |
800°F |
600°F |
550°F |
| Stress Relaxation | |||||||
| Fatigue Life | |||||||
| Corrosion | |||||||
| Non-Magnetic | ✗ | ✗ | ✗ | ✓ | ✓ | ✗ | ✗ |
| Typical Spring Types | Helical, Canted Coil, Cantilever, Full Contact, Detached Leg | Helical, Canted Coil, Cantilever, Full Contact, Detached Leg | Helical, Canted Coil, Cantilever, Full Contact, Detached Leg | Helical, Canted Coil, Cantilever | Canted Coil, Garter | Helical, Canted Coil, Cantilever, Full Contact, Detached Leg | Helical, Canted Coil, Cantilever, Full Contact, Detached Leg |
| Cost | High | High | High | Very High | Very High | Low | Low |
Note: Temperature values are for general reference only. Actual performance depends on specific manufacturing processes, heat treatment, material condition, and application parameters. Different suppliers may produce materials with varying characteristics. Always verify with material certification and application-specific testing.
• Stress relaxation — critical for maintaining sealing force over time; Inconel X-750 and Elgiloy offer the best retention at elevated temperatures.
• Fatigue life — important for dynamic sealing applications; Elgiloy offers the highest fatigue life, while Inconel X-750 provides excellent performance in high-temperature dynamic applications.
• Temperature capability — Inconel X-750 and 718 are preferred for continuous high-temperature service; 17-7PH and 302 are limited to moderate temperatures.
• Corrosion resistance — Inconel 625 and Elgiloy offer outstanding corrosion resistance; stainless steels provide moderate protection.
Engineering Selection Guidance
Inconel X-750 is typically selected when long-term spring force retention at elevated temperatures is more critical than maximum corrosion resistance. Compared with Inconel 625, it offers significantly better stress relaxation resistance for spring applications. Compared with Inconel 718, it provides reliable performance for many sealing applications while remaining a well-established choice for spring manufacturing. When operating temperatures exceed the practical limits of precipitation-hardened stainless steels such as 17-7PH, Inconel X-750 becomes one of the preferred materials for spring energizers used in aerospace, energy, and industrial sealing equipment.
Material selection should always be evaluated together with spring geometry, sealing media, operating temperature, and required spring force.
If material selection is uncertain, Handa Spring can manufacture spring energizers in multiple alloys according to customer specifications. Contact our engineering team for application-specific recommendations.
FAQ
Common questions about custom Inconel X-750 spring energizers.
Can you manufacture Inconel X-750 springs according to our drawings?
Can you manufacture from samples or match existing springs?
Which spring types can be manufactured in Inconel X-750?
Do all spring types require tooling?
Can you customize spring force?
What is your minimum order quantity?
Can you provide prototypes?
Do you provide engineering support before production?
