Spring energized canted coil springs provide consistent force, wide deflection, and long service life for sealing and electrical contact applications. Learn how spring energized designs outperform traditional springs in demanding industries.

Spring energized refers to a design approach where a metal spring provides continuous and controlled force to maintain functional performance over time. In sealing and contact systems, spring energized designs compensate for wear, tolerance variation, thermal expansion, and material relaxation.

When applied to canted coil springs, the spring itself becomes the energizing element—delivering uniform force across a wide deflection range while maintaining stable mechanical performance.

What Is a Spring Energized Canted Coil Spring?

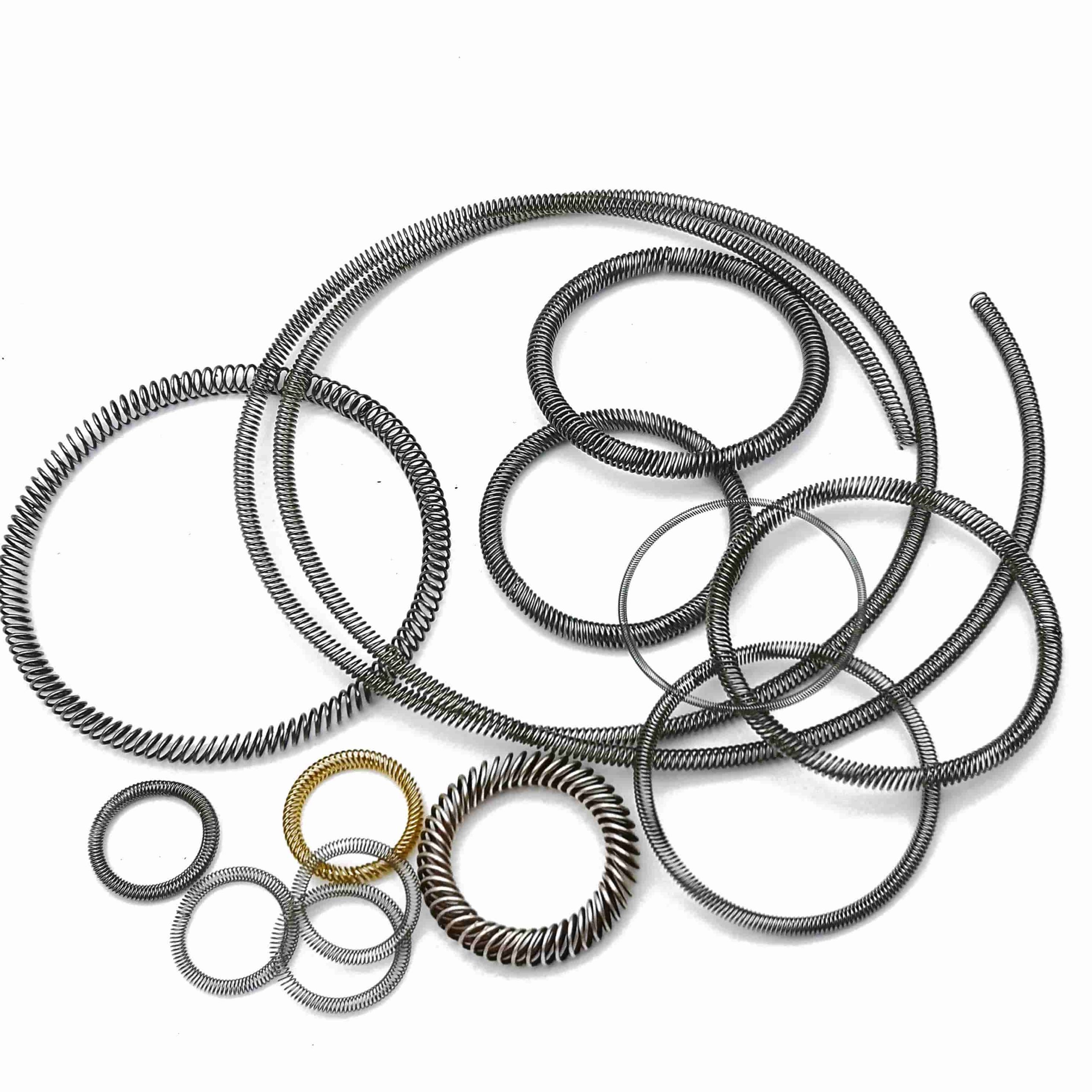

Canted coil spring seal energizer — precision micro spring

A spring energized canted coil spring is a specialized metal spring composed of angled (canted) coils arranged in a continuous helix. Unlike traditional compression springs, each coil is tilted at a specific angle, allowing the spring to deflect smoothly while maintaining near-constant load.

This makes canted coil springs ideal as spring energized components in:

Spring energized seals
Electrical contacts
EMI shielding systems
Precision mechanical assemblies

How Canted Coil Springs Provide Spring Energization

The unique geometry of a canted coil spring enables:

Feature	Benefit
Angled coil design	Uniform force distribution
Large elastic deflection	Stable force over long travel
Line contact behavior	Low friction and wear
Self-adjusting response	Compensates for tolerance changes

In spring energized applications, the canted coil spring continuously applies force to sealing lips, contact surfaces, or conductive interfaces, ensuring reliable performance even under dynamic conditions.

Key Advantages of Spring Energized Canted Coil Springs

1. Consistent Force Output

Spring energized canted coil springs deliver nearly constant load across a wide working range, reducing performance drop over time.

2. Wide Deflection Capability

Compared to conventional springs, they allow significantly more deflection without permanent deformation.

3. Long Service Life

Low stress concentration and uniform load distribution extend fatigue life in cyclic applications.

4. Excellent Environmental Resistance

Available in stainless steel, Inconel®, Hastelloy®, MP35N, and Elgiloy®, suitable for high temperature, corrosion, and vacuum environments.

5. Low Friction for Dynamic Systems

Ideal for dynamic sealing and sliding contact where friction control is critical.

Spring Energized Canted Coil Springs vs Traditional Springs

Parameter	Canted Coil Spring	Compression Spring
Force Stability	Excellent	Variable
Deflection Range	Wide	Limited
Friction	Low	Higher
Fatigue Life	Long	Moderate
Suitability for Energized Seals	Excellent	Limited

For spring energized designs, canted coil springs offer superior mechanical consistency.

Common Spring Energized Applications Using Canted Coil Springs

Spring Energized Seals

Canted coil springs are widely used as energizers inside PTFE or polymer sealing jackets to maintain sealing force under extreme conditions.

Electrical Contacts

Used in spring energized electrical connectors for stable contact resistance and vibration tolerance.

EMI / RFI Shielding

Provide consistent conductive force in spring energized EMI shielding gaskets.

Aerospace & Semiconductor Equipment

Reliable performance in vacuum, high temperature, and precision motion systems.

Design Considerations for Spring Energized Canted Coil Springs

When designing a spring energized system using canted coil springs, engineers should consider:

Required load and deflection
Radial vs axial energization
Material selection based on environment
Groove or housing dimensions
Expected cycle life

Proper spring selection ensures optimal energization without excessive wear or deformation.

Why Choose Spring Energized Canted Coil Springs?

Spring energized canted coil springs combine precision force control, durability, and adaptability, making them the preferred choice for high-performance sealing and contact applications.

Their ability to maintain consistent energization over long service life makes them essential in industries where reliability and precision matter most.

Conclusion

Spring energized canted coil springs represent an advanced solution for modern engineering challenges. Their unique geometry and material flexibility enable reliable energization across a wide range of operating conditions.

As demand grows for high-performance sealing and contact systems, spring energized canted coil springs continue to set the standard for consistency, durability, and design efficiency.
